Visualizing the SpaceX Tesla Roadster trip to Mars¶

[1]:

from astropy.time import Time
from astropy import units as u

from boinor.bodies import Earth, Mars, Sun
from boinor.ephem import Ephem
from boinor.frames import Planes
from boinor.plotting import OrbitPlotter
from boinor.plotting.orbit.backends import Plotly3D
from boinor.util import time_range

EPOCH = Time("2018-02-18 12:00:00", scale="tdb")

[2]:

roadster = Ephem.from_horizons(
    "SpaceX Roadster",
    epochs=time_range(EPOCH, end=EPOCH + 360 * u.day),
    attractor=Sun,
    plane=Planes.EARTH_ECLIPTIC,
);
roadster

[2]:

Ephemerides at 50 epochs from 2018-02-18 12:00:00.000 (TDB) to 2019-02-13 12:00:00.000 (TDB)

[3]:

from boinor.plotting.misc import plot_solar_system

[4]:

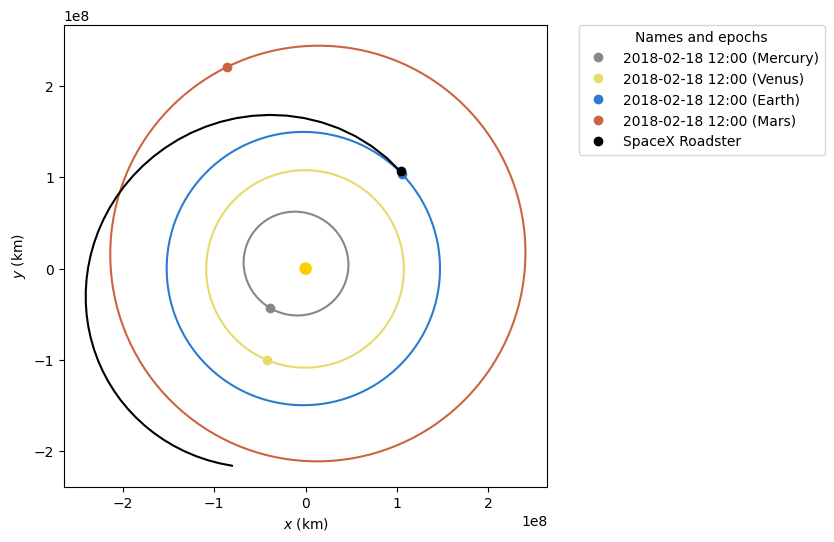

frame = plot_solar_system(outer=False, epoch=EPOCH)
frame.plot_ephem(roadster, EPOCH, label="SpaceX Roadster", color="black");

../_images/examples_visualizing-the-spacex-tesla-roadster-trip-to-mars_4_0.png

[5]:

frame = OrbitPlotter(backend=Plotly3D(), plane=Planes.EARTH_ECLIPTIC)

frame.plot_body_orbit(Earth, EPOCH)
frame.plot_body_orbit(Mars, EPOCH)

frame.plot_ephem(roadster, EPOCH, label="SpaceX Roadster", color="black")

frame.set_view(45 * u.deg, -120 * u.deg, 4 * u.km)
